| Model |

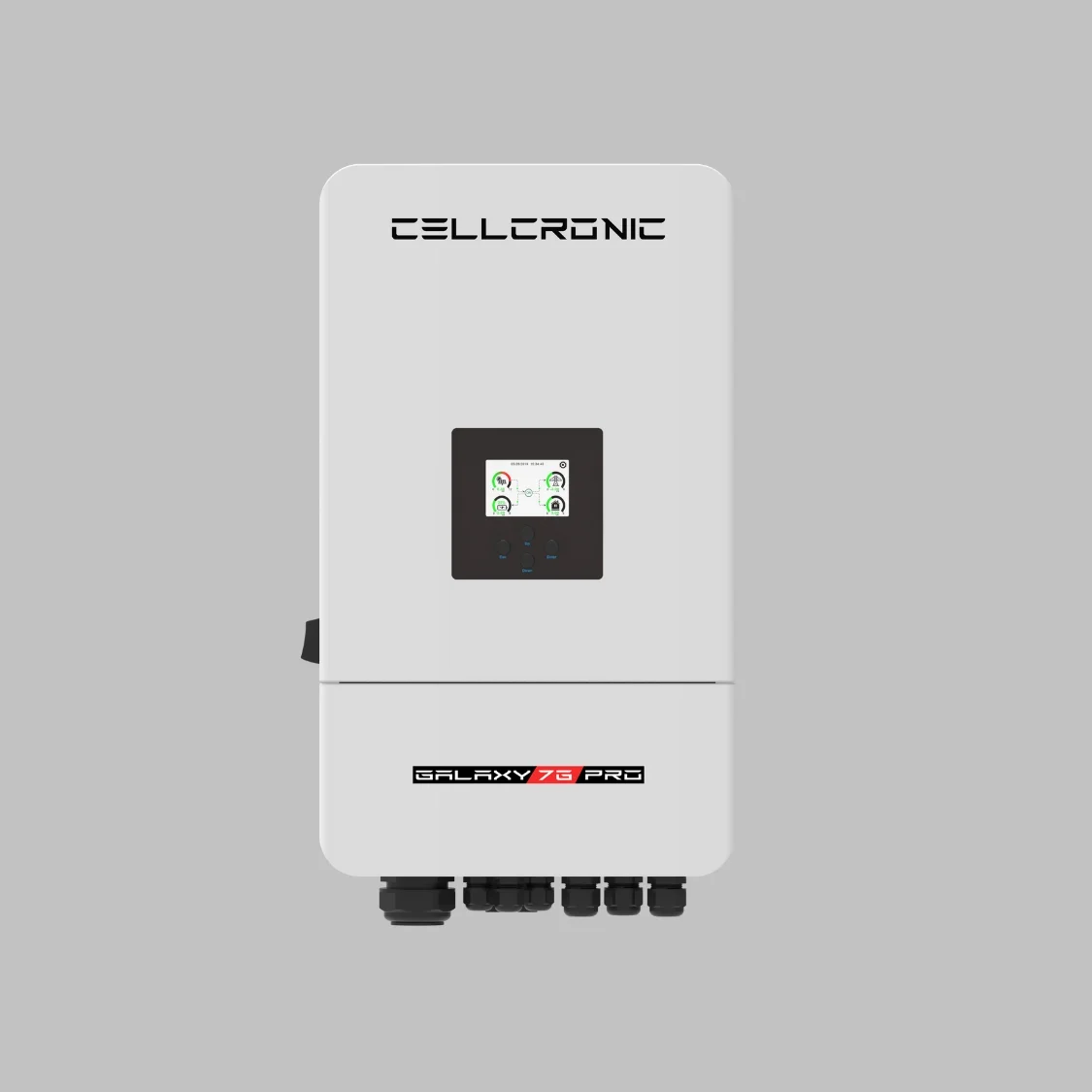

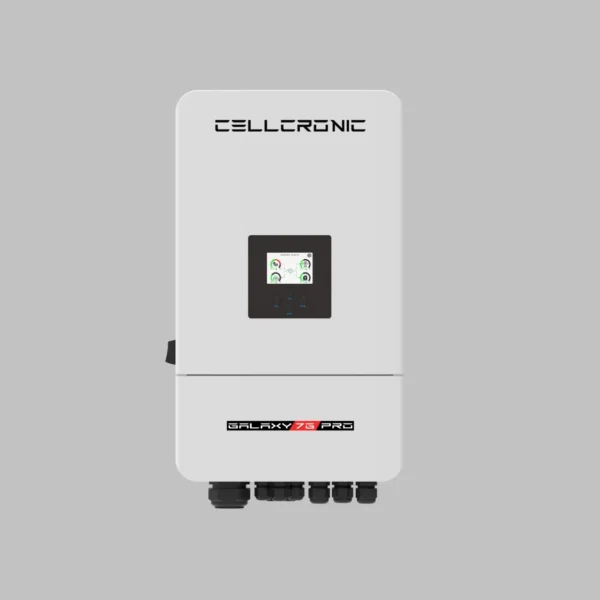

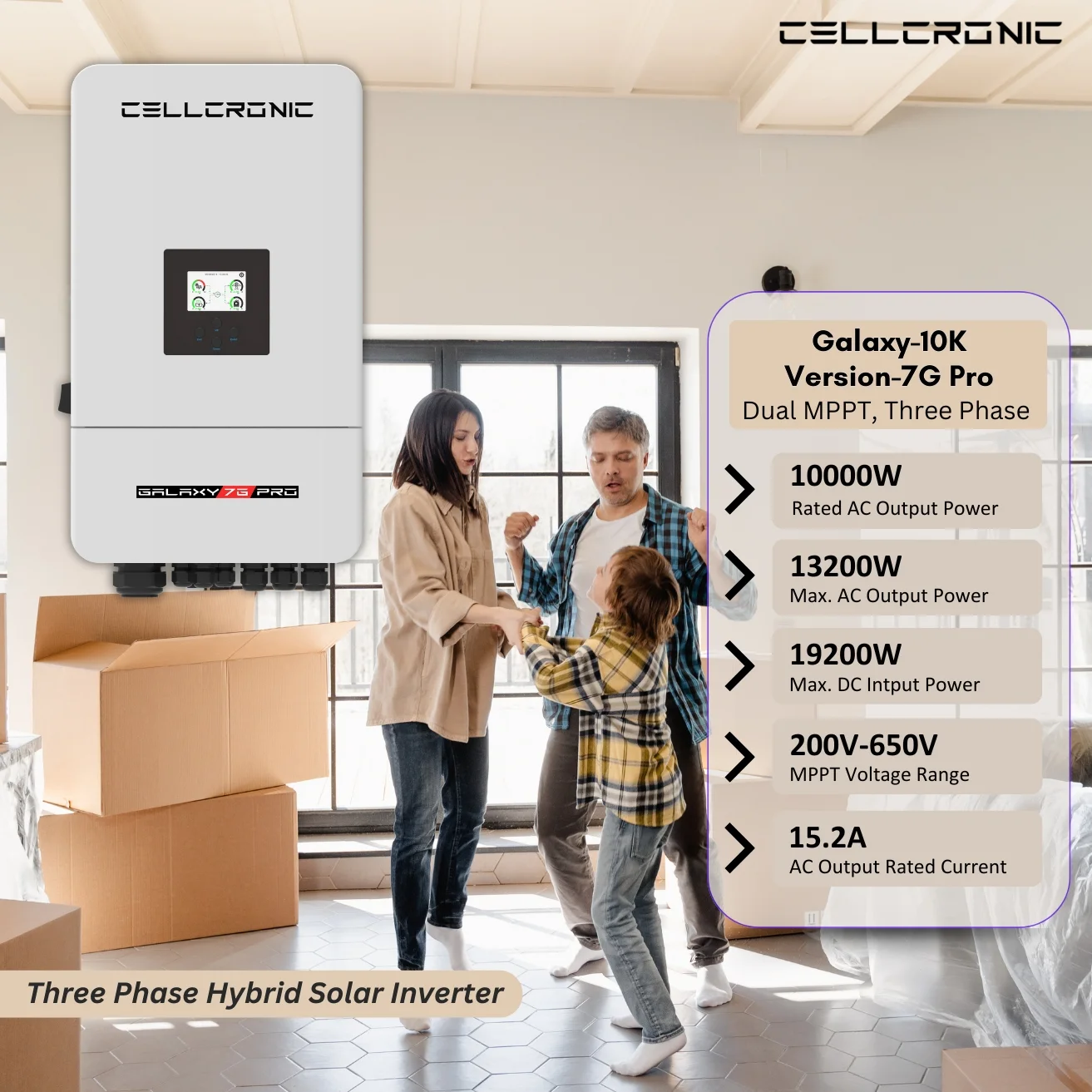

Galaxy-10K-Version-7G Pro 3P Dual Mppt Hybrid Solar Inverter |
| Battery Input Data |
| Battery Type |

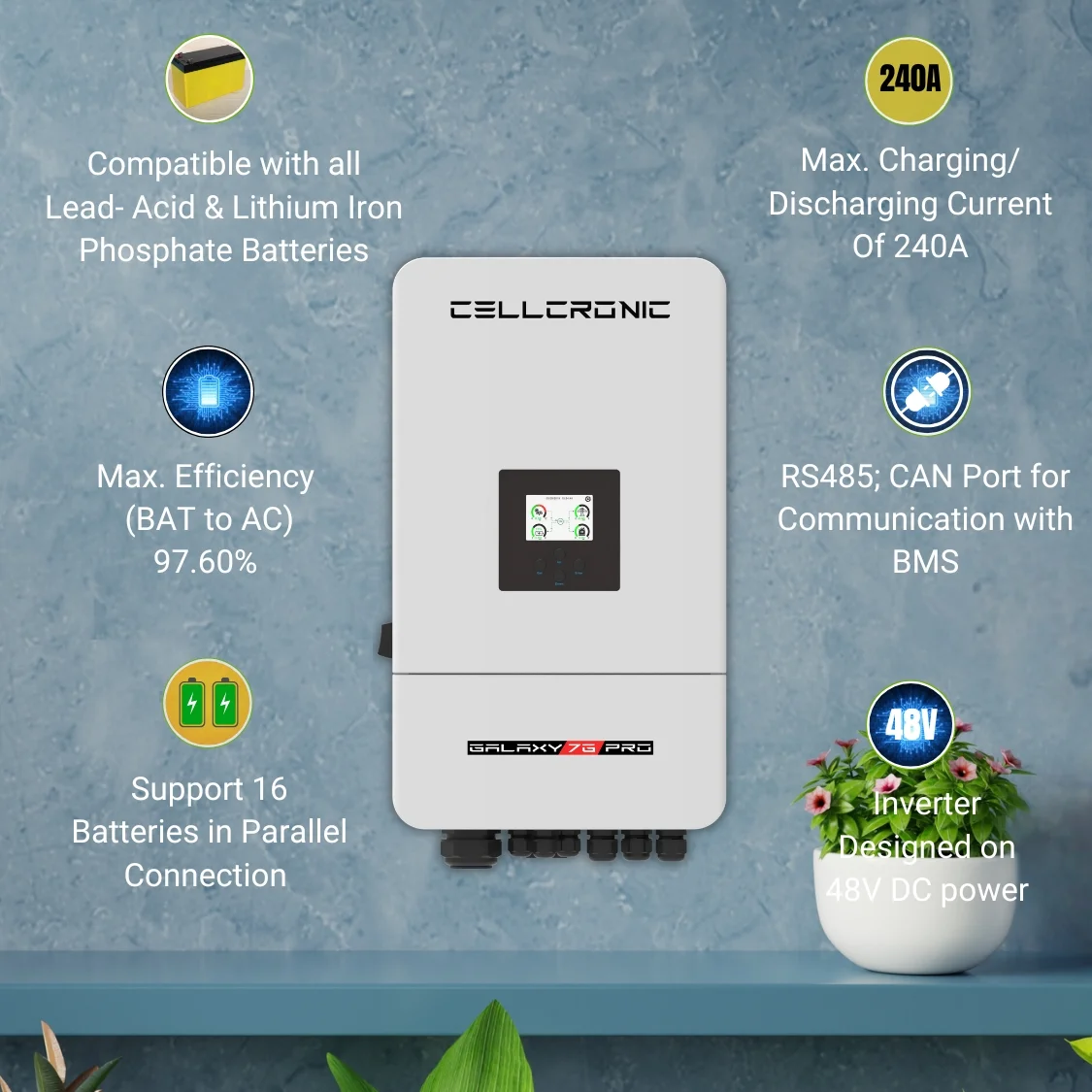

Lead–acid or Lithium–ion |
| Battery Voltage Range (V) |
40~60V |
| Max. Charging Current (A) |
240A |
| Max. Discharging Current (A) |
240A |
| Charging Curve |
3 Stages / Equalization |
| External Temperature Sensor |
Optional |
| Charging Strategy for Li-ion Battery |
Self-adaption to BMS |
| PV STRING INPUT DATA |
| Max. DC Input Power(W) |
19200W |
| Max. PV input Voltage (V) |
800V |
| Start-up Voltage (V) |
160V |
| Mppt Voltage Range (V) |
200V-650V |
| Rated PV Input Voltage (V) |
550V |
| Max. Operating PV Input Current (A) |
26+26 |
| Max. Input Short-Circuit Current (A) |
39+39 |
| No. of Mppt Trackers |
2 |
| No. of String Mppt Tracker |
2+2 |
| AC OUTPUT DATA |
| Â Rated AC Input/Output Active Power (W) |
10000W |
| Â Max. AC Input/Output Apparent Power (W) |
13200W |
| Â Rated AC Input/Output Current (A) |
 15.2/14.5 |
| Max. AC Input/Output Current (A) |
 20/19.2 |
| Max. Continuous AC Passthrough (grid to load) (A) |
45A |
| Peak Power (off grid) |
 2 time of rated power, 10 S |
| Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
| Rated Input/Output Voltage/Range (V) |
220/380V, 230/400V 0.85Un-1.1Un |
| Rated Input/Output Grid Frequency/Range(Hz) |
50/45-55, 60/55-65 |
| Grid Connection Form |
3L+N+PE |
| Total Current Harmonic Distortion THDi |
 <3% (of nominal power) |
| DC Injection Current |
<0.5% In |
| Grid Type |
Three Phase |
| Current Harmonic Distortion |
THD<3%(Linear load<1.5%) |
| EFFICIENCY |
| Max. Efficiency |
 97.6% |
| Euro Efficiency |
 97.0% |
| MPPT Efficiency |
 >99% |
| PROTECTION |
| PV Arc Fault Detection |
Integrated(Except European Type) |
| PV Input Lightning Protection |
Integrated |
| Anti-island Protection |
Integrated |
| PV String Input Reverse Polarity Protection |
Integrated |
| Insulation Resistor Detection |
Integrated |
| Residual Current Monitoring Unit |
Integrated |
| Output Over Current Protection |
Integrated |
| Output Shorted Protection |
Integrated |
| Output Over Voltage Protection |
Integrated |
| Surge Protection |
 TYPE II(DC), TYPE II(AC) |
| CERTIFICATION AND STANDARDS |
| Grid Regulation |
 IEC 61727, IEC 62116,CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25,G98, G99,VDE-AR-N 4105 |
| Safety / EMC Standard |
 IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
| GENERAL DATA |
| Operating Temperature Range(°C) |
-40 to +60℃, >45℃ Derating |
| Permissible Ambient Humidity |
 0-100% |
| Permissible Altitude |
3000m |
| Inverter Topology |
Non-Isolated |
| Over Voltage Category |
OVC II(DC), OVC III(AC) |
| Type of Cooling |
Intelligent Air Cooling |
| Noise (dB) |
≤55 |
| Communication with BMS |
 RS485; CAN |
| Weight (kg) |
35.2Kg |

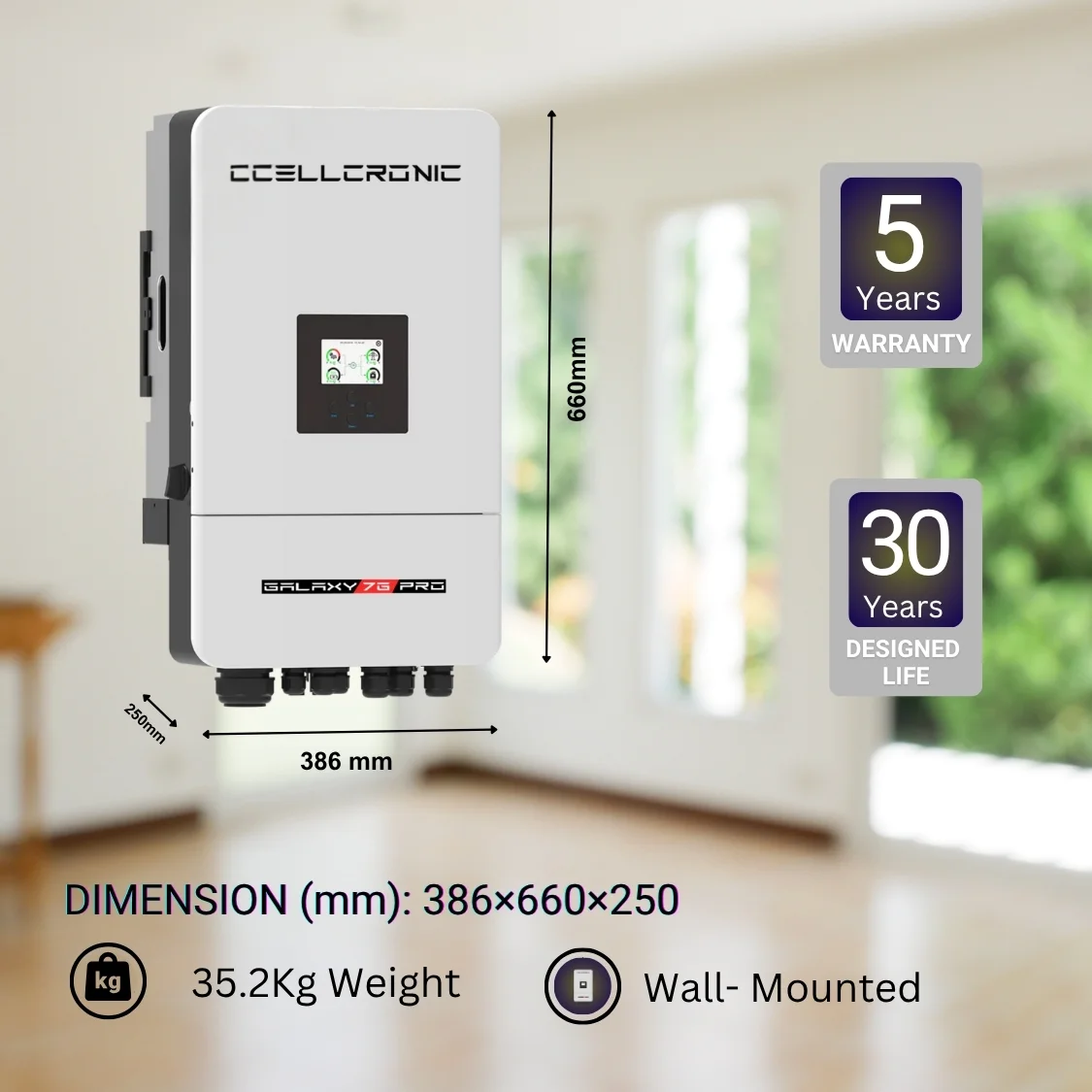

| Cabinet Size (WxHxD mm) |
386×660×250 (Excluding Connectors and Brackets) |
| Ingress Protection(IP) Rating |

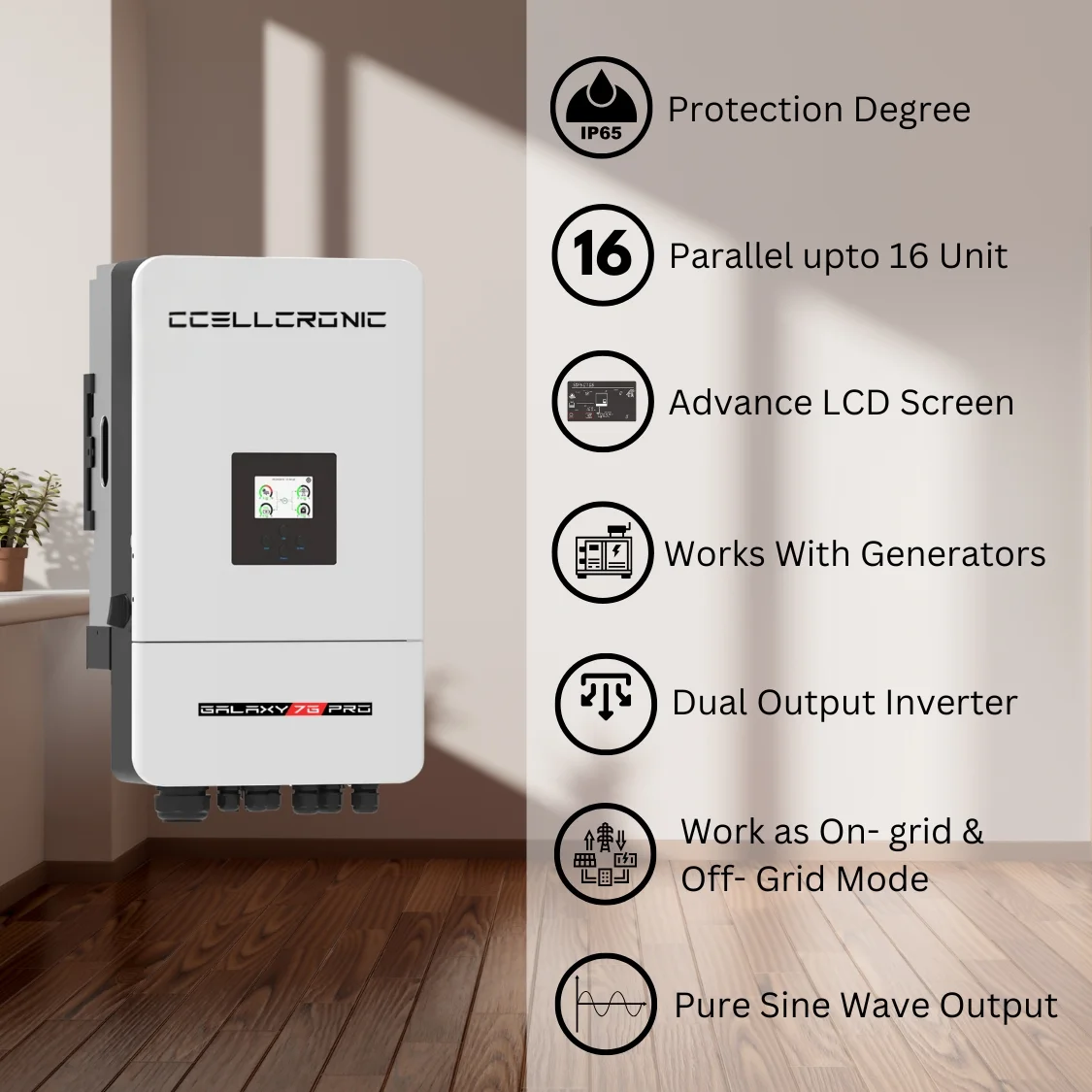

IP65 |
| Installation Style |
Wall-mounted |
| Warranty |
 5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty |
